GB7WOR Worcester Park, Surrey
Locator: IO91vj
Lat/Lon of grid corner: 51.385200 -0.242500
Sysop: Ray, G7TWZ
Email: [email protected]
Packet mail: g7twz@#32.GBR.EURO
Live traffic monitor for GB7WOR at http://brambletree.drayddns.com:8080/
Live network map https://nodes.ukpacketradio.network/packet-network-map.html?rfonly=1
Technical
Node
- Raspberry Pi 4 (Trixie), running LinBPQ and QtSoundModem
The entire LinBPQ installation (config, messages, chats, etc.) is backed up every 30 minutes, to minimise the risk of data loss.
Ports
| Port | Frequency | Antenna | Mode | ERP | Status | Radio | Links |
|---|---|---|---|---|---|---|---|
| 1 | 432.675MHz 12.5KHz FM | V Omni 3dBd 7mAGL | 1200bd AFSK (QTSoundModem) | 14dBW | online | Retevis RT-95 | |
| 2 | 144.950MHz 12.5KHz FM | V Omni 0dBd 7mAGL | 4800bd GFSK (NinoTNC 0100) | 14dBW | online | Kenwood TM-G707 | |
| 3 | 50.660MHz 10KHz FM | V Omni 0dBd 7mAGL | 2400bd QPSK IL2Pc (NinoTNC 1011) | 14dBW | online | Yaesu FT-8900 | |
| 4 | AXIP | Internet | N/A | N/A | online | N/A |
If you want to AXIP connect, please mail me.
BBS
Fully operational BBS with personal mail and bulletins.
Runs an automated mail responder for testing your route(s) to this BBS. The polling/response time is less than one minute. Send a message to GE7TWZ.#32.GBR.EURO and receive a response.
Propogation
Estimated propagation created using Radio Mobile Online - https://www.ve2dbe.com/rmonlinelogin.asp

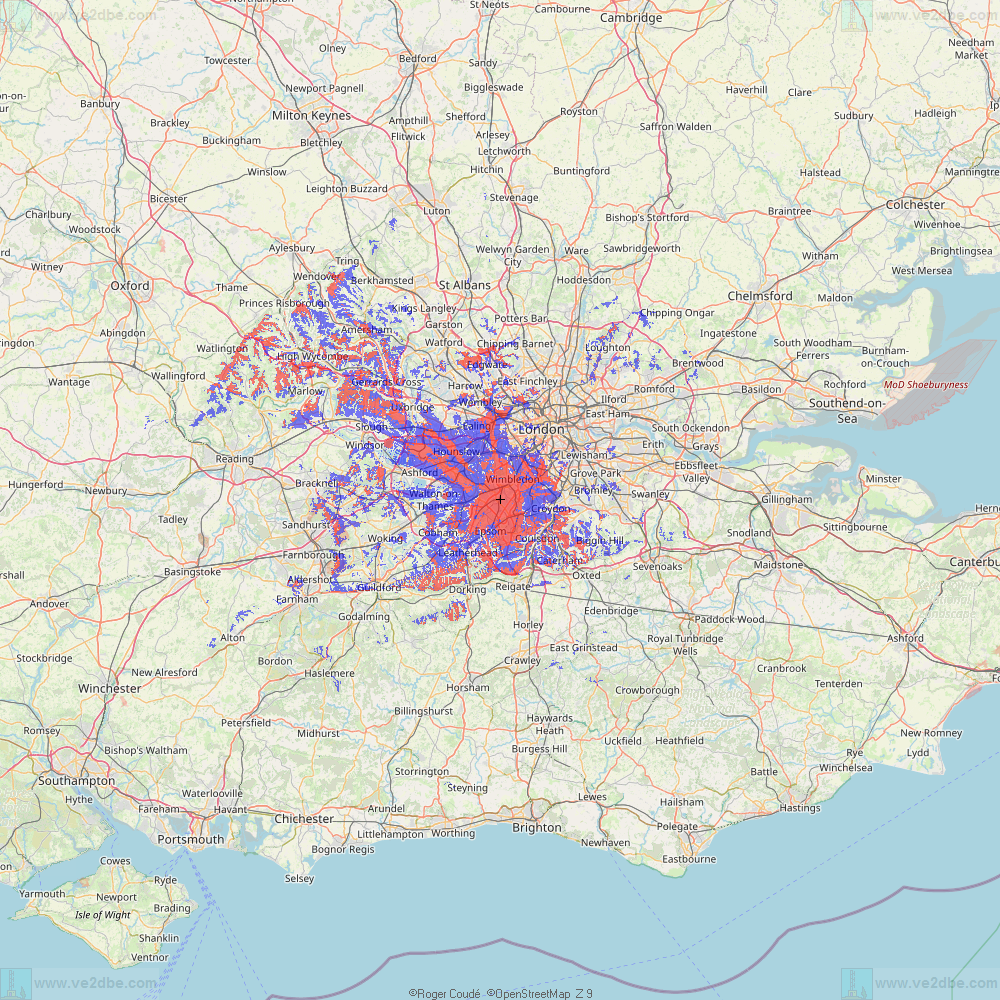

432MHz

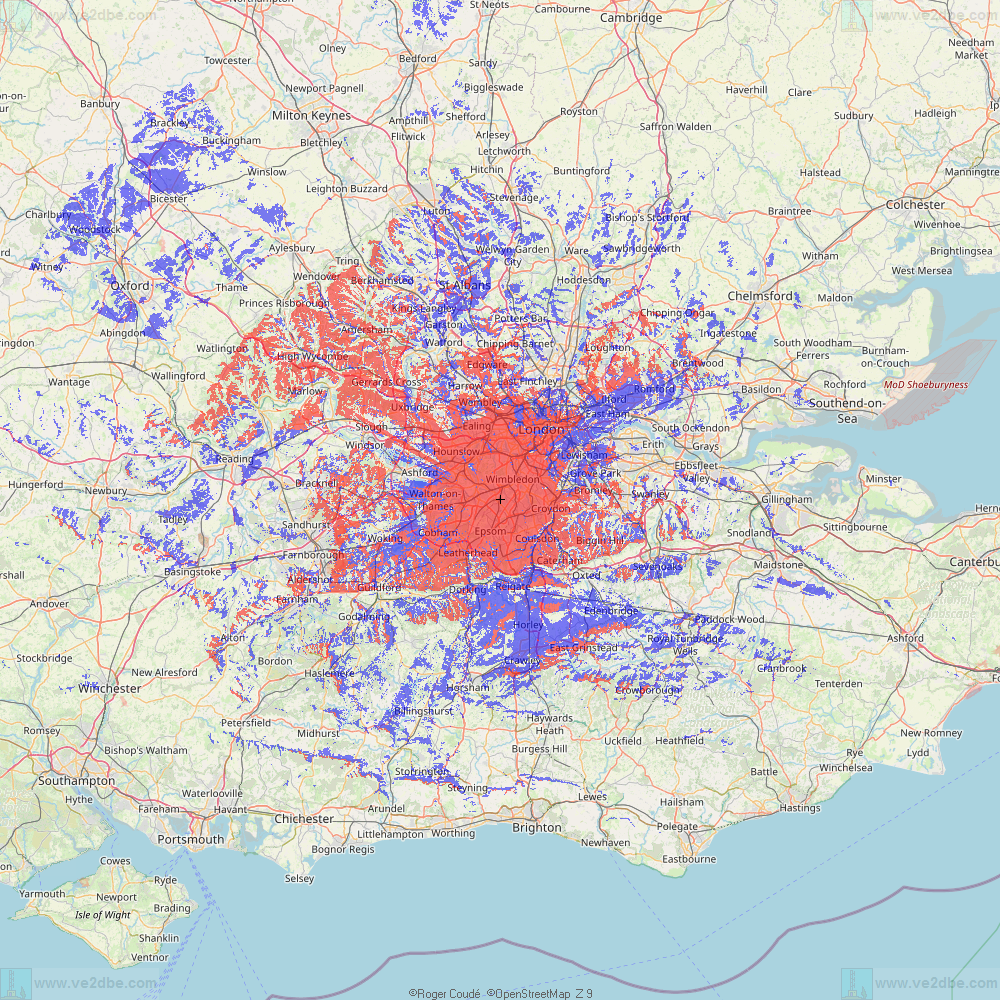

144MHz

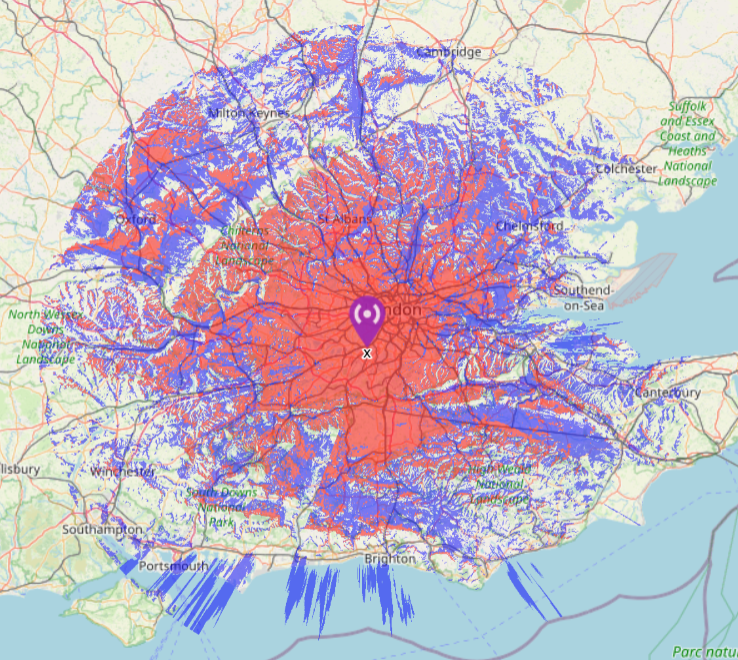

50MHz
