Locator: IO62nr

Test packet node, will be transitioned to a more permanent callsign(s) later on

Computer - Raspberry Pi 4B - BPQ

2m

• Frequency - 144.950MHz
• Antenna - Diamond X510n @~6m AGL
• Coax - RTK-400
• Radio - Kenwood D710 (For now)
• Power - 50W (High)
• Mode - 3k6 IL2Pc QPSK FM
• Future - Will be moved from my main shack to an outbuilding but running a similar antenna and transitioned to a different radio

4m (Planned)

• Frequency - ???
• Antenna - Diamond ??? @~6m AGL
• Coax - RTK-400
• Radio - Motorola 950?
• Power - 20W
• Mode - ???
• Future - Hopefully will be on air August 2025

6m (Planned)

• Frequency - ???
• Antenna - Siro ???
• Coax - RTK-400
• Radio - IC-706
• Power - ???
• Mode - ???
• Future - Hopefully will be on air August 2025

70cm (Planned)

• Frequency - ???
• Antenna - Diamond X500n @~6m AGL - shared with 2m
• Coax - RTK-400
• Radio - ???
• Power - ???
• Mode - ???
• Future - May initially be brought on air using Kenwood D710 once I swap out the 2m radio, unknown date at the moment.

IP Links

• IP links will be added as required where they make sense for the network

Lots of unknowns until I actually build out some aspects and/or confirm details when I am at home.

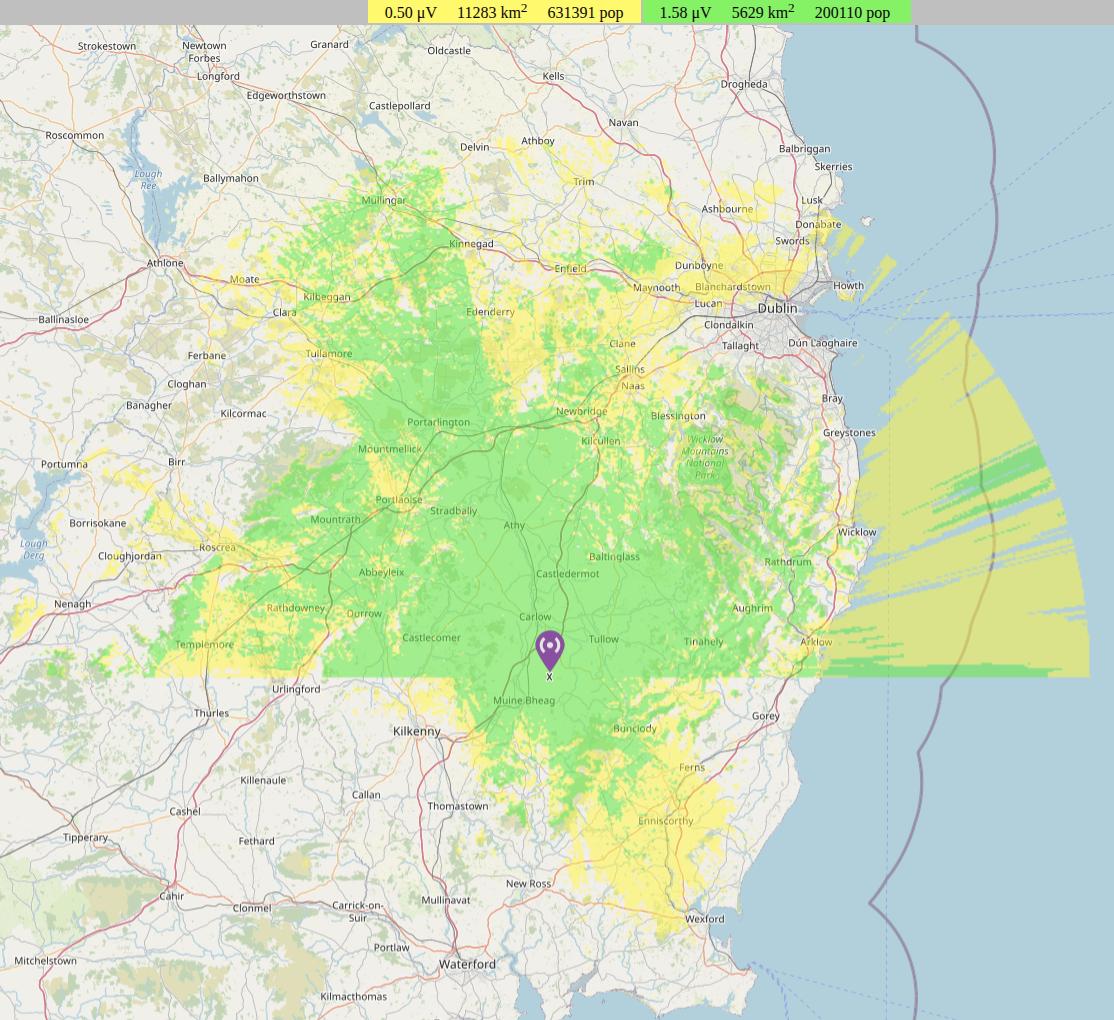

2m Predicted coverage
